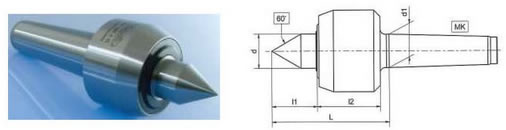

REVOLVING CENTRES - HEAVY DUTY
Morse Taper MK Model Type Max RPM Max Weight Work Piece Max Run Out mm Body Dia mm d mm d1 mm l mm l1 mm l2 mm
3 HDRC3 833 4300 400kg 0.005 60 24 23.83 95 36 52
4 HDRC4 843 3200 750kg 0.005 76 32 31.27 112 43 60
5 HDRC5 853 2600 2000kg 0.007 96 42 44.40 134 49 74
6 HDRC6 863 2000 4500kg 0.010 110 52 63.35 155 62 82

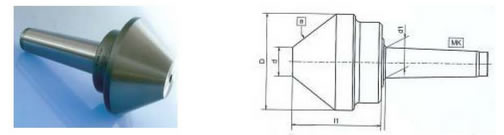

REVOLVING TUBE CENTRES





Morse Taper MK Model Type Cone Angle a d mm D mm l1  mm MAX RPM

Max Weight
Work Piece

@d

Max Weight
Work Piece

@D

 Concentricity mm
2 RH2/20-60 421 60°
 20 60 66 4000 140 kg 200 kg 0.005

3 RH3/30-100 432 75° 30 100 92 3000 250 kg 400 kg 0.005
4 RH4/50-125 442 75° 50 125 82 3000 500 kg 650 kg 0.007
5 RH5/50-150 452 75° 50 150 102 2800 1200 kg 1900 kg 0.007
6 RH6/50-200 462 75° 50 200 126 2800 1800 kg 2800 kg 0.010
